The Ultimate Guide to Endo Instruments and Endo Pluggers

1. Understanding Endo Instruments: The Backbone of Root Canal Therapy

What Are Endo Instruments?

Endo instruments, or endodontic instruments, are specialized dental tools used during root canal therapy. These instruments enable the dentist to navigate the complex anatomy of the tooth, remove infected or necrotic pulp tissue, clean and shape the root canal, and eventually fill it with a sealing material. Their precision and design are vital to the success of the procedure and the long-term health of the tooth.

Endodontic procedures require different instruments at various stages of treatment. The complexity of the root canal system often demands a combination of manual dexterity, rotary motion, and chemical disinfection—all facilitated by an array of endo instruments.

Key Categories of Endo Instruments

1.1 Diagnostic Endo Instruments

Before treatment begins, accurate diagnosis is critical. Diagnostic instruments include:

• Endo Explorers: Long, thin instruments used to detect canal orifices and check the internal anatomy of the tooth.
• Pulp Testers: Devices (thermal or electric) used to evaluate the vitality of the pulp tissue.
• Radiographic Tools: Include film holders and markers to assist in obtaining accurate dental radiographs for diagnosis and treatment planning.

1.2 Cleaning and Shaping Instruments

This category includes tools designed to clean out infected tissue and shape the root canal to receive filling material.

• Barbed Broaches: Used for initial removal of pulp tissue. Their barbed design helps snag tissue but can fracture if used improperly.
• K-Files and H-Files: Hand-operated files used for mechanical debridement. K-files are twisted and less aggressive, while H-files are machined for more aggressive cutting.

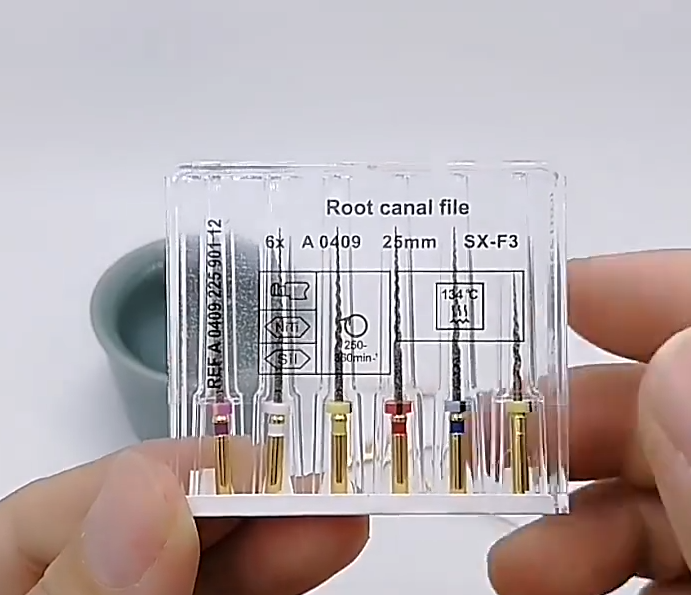

• Rotary NiTi Files: These nickel-titanium rotary files provide greater flexibility and efficiency, especially in curved canals.

1.3 Irrigation and Aspiration Instruments

Root canal irrigation is essential to flush out debris, bacteria, and necrotic tissue.

• Irrigation Needles: Often side-vented to prevent extrusion beyond the apex.
• Ultrasonic Irrigation Tips: Used to agitate irrigants within the canal, increasing their effectiveness.

1.4 Obturation Instruments

These instruments are used to fill and seal the root canal.

• Gutta-Percha Carriers: Devices that transport and place filling material inside the canal.
• Endo Plugger: Used to compact the gutta-percha or other filling materials for a complete seal.

2. Spotlight on the Endo Plugger

What Is an Endo Plugger?

An endo plugger is a vital instrument used during the obturation phase of root canal therapy. It functions to condense and compact the filling material within the canal space to ensure that no voids are left. Proper condensation is key to preventing reinfection and ensuring a hermetic seal.

Endo pluggers come in various designs and functionalities, including manual, heated, and ultrasonic models. They may vary in size and taper to accommodate different canal sizes and treatment techniques.

Types of Endo Pluggers

2.1 Manual Endo Pluggers

These are the most traditional type, typically made of stainless steel or titanium. They are:

• Available in various sizes.
• Used in vertical or lateral compaction techniques.
• Double-ended with different diameters for versatility.

2.2 Heated Endo Pluggers

These pluggers heat gutta-percha to enhance its flow, making it easier to adapt to canal walls.

• Often part of systems like System B.
• Quick heating and precise temperature control.
• Useful for warm vertical condensation.

2.3 Ultrasonic Endo Pluggers

These use ultrasonic vibrations to aid in condensation or material placement.

Provide vibration-assisted compaction.

Especially useful in apical surgery or for placing retrograde fillings.

Key Features of a Quality Endo Plugger

• Material: High-grade metals for durability and sterilization.
• Ergonomics: Non-slip, lightweight handles for precision.
• Compatibility: Heat-compatible or ultrasonic-ready versions.
• Variety: Multiple sizes to match various canal anatomies.

3. Materials Used in Endo Instruments and Pluggers

3.1 Stainless Steel

Stainless steel is a standard material for many hand files and manual pluggers due to its strength and affordability.

Pros: Durable, corrosion-resistant, economical.

Cons: Less flexible, prone to transportation of curved canals.

3.2 Nickel-Titanium (NiTi)

NiTi offers superelasticity, making it ideal for curved and narrow canals.

Pros: Highly flexible, shape memory.

Cons: More expensive, risk of sudden fracture if overstressed.

3.3 Titanium Alloy

Used in premium pluggers and instruments.

Pros: Lightweight, biocompatible, corrosion-resistant.

3.4 Polymeric Handles

Used to improve grip and reduce operator fatigue.

Often autoclavable.

Available in color-coded designs for quick identification.

4. Clinical Application of Endo Pluggers

4.1 Vertical Compaction Technique

A heated plugger is used to compact softened gutta-percha vertically into the canal:

• Achieves a dense, void-free fill.
• Conforms to canal irregularities.
• Requires precision and practice.

4.2 Lateral Compaction Technique

The endo plugger pushes accessory cones laterally around a master cone:

• Simpler than vertical compaction.
• Best suited for straight or moderately curved canals.
• Often combined with cold gutta-percha techniques.

4.3 Apical Plug Placement

Used in cases with immature apices or perforations:

• Places materials like MTA or Biodentine.
• Provides a barrier for final obturation.
• Requires pluggers with specific tip sizes.

5. Sterilization and Maintenance of Endo Instruments

Why Sterilization Matters

Endo instruments contact blood and tissue, making sterilization essential to prevent cross-contamination and nosocomial infections.

Best Practices

5.1 Pre-Cleaning

Rinse instruments immediately after use.

Use enzymatic detergents to dissolve organic debris.

5.2 Ultrasonic Cleaning

Removes micro-debris that brushing cannot.

Enhances effectiveness of sterilization.

5.3 Autoclaving

High-temperature steam sterilization.

Suitable for most metal instruments.

5.4 Dry Heat Sterilization

Ideal for heat-resistant materials.

May take longer but avoids moisture.

5.5 Chemical Disinfection

Used when autoclaving is not feasible.

Must be EPA-approved for high-level disinfection.

Instrument Lifecycle Management

• Inspection: Look for wear, corrosion, and deformation.
• Usage Tracking: Replace files and pluggers after designated uses.
• Storage: Use sterile containers and avoid contamination.

6. Innovations in Endo Instruments and Endo Pluggers

6.1 Smart Rotary Systems

Digital torque control.

Auto-reverse to prevent breakage.

Bluetooth connectivity and preset programs.

6.2 Cordless Heated Pluggers

Improve mobility and ergonomics.

Rapid heating and auto-shutoff.

Compatible with various gutta-percha systems.

6.3 Laser-Assisted Endo Tools

Emerging technology.

Promising in disinfection and obturation.

6.4 Bioceramic-Compatible Pluggers

Designed to place and condense bioceramic materials.

Non-reactive and precisely sized.

7. Endo Plugger Selection Guide

8. Challenges and Solutions

8.1 Instrument Separation

Caused by overuse or canal resistance.

Use new or well-maintained instruments.

8.2 Incomplete Cleaning

Occurs in curved or branched canals.

Use ultrasonic irrigation to enhance cleaning.

8.3 Poor Obturation Quality

Voids or gaps due to improper plugger use.

Train with proper plugger techniques and size selection.

FAQs

Q1: How often should endo instruments be replaced?

A: Hand files may last up to 10 uses; NiTi rotary files should be replaced after 3–5 uses or sooner if deformed.

Q2: Can I use a manual plugger for heated obturation?

A: No. Manual pluggers cannot transfer heat. Use specialized heated endo pluggers.

Q3: What materials can endo pluggers work with?

A: Gutta-percha, thermoplastic materials, MTA, bioceramics, and resin-based sealers.

Q4: Are disposable endo pluggers available?

A: Yes, some manufacturers offer pre-sterilized, single-use options.

Q5: What’s the difference between a spreader and a plugger?

A: Spreaders are pointed and used for lateral compaction; pluggers have blunt tips for vertical condensation.

Conclusion

Endodontic success depends heavily on the tools in a clinician’s hands. From diagnosis to obturation, endo instruments form the foundation of modern root canal therapy. Among them, the endo plugger stands out for its crucial role in achieving a leak-proof seal.

By choosing the right instruments, maintaining them properly, and keeping up with innovations, dentists can significantly improve outcomes for their patients. Whether you're a general practitioner or an endodontic specialist, mastering the use of endo instruments and endo pluggers is essential for clinical excellence.
