Root Canal File Size Chart, Types & Usage Explained for Dentists

Introduction

Root canal treatment (RCT) is a delicate and highly technical dental procedure that involves the removal of infected or necrotic pulp tissue, disinfection of the root canal system, and the eventual filling and sealing of the canal to prevent reinfection. At the core of this procedure lies a seemingly simple yet vital tool — the root canal file. Without it, effective cleaning, shaping, and debridement of the intricate root canal anatomy would be nearly impossible.

With advances in endodontic instruments and techniques, root canal files have evolved from basic hand files to highly sophisticated rotary and reciprocating systems. These instruments come in various types, materials, and root canal file sizes, each suited to specific treatment goals and tooth anatomies.

This guide will explore everything from the foundational concepts to cutting-edge innovations, offering clarity on how to choose and use the appropriate root canal file for successful treatment outcomes.

What Is a Root Canal File?

A root canal file is a slender, tapered instrument designed to enter the root canal space and remove infected pulp tissue, shape the canal, and assist in its cleaning. Files may be used manually (hand files) or powered with a motor (rotary files), and they often feature cutting flutes along their shafts to effectively shave and scrape away debris.

Root canal files have various tip diameters, known as ISO sizes, and come in different lengths, typically ranging from 21mm to 31mm. The tip shape, taper, cutting edge, and material composition all affect a file’s performance.

The Role of Root Canal Files in Endodontics

Root canal files serve multiple purposes during RCT:

• Mechanical Debridement: Files physically remove pulp tissue, bacteria, and biofilm from the canal walls.
• Canal Shaping: The files create a smooth, tapered preparation that facilitates irrigant penetration and obturation.
• Pathfinding: Small files help locate and explore narrow or calcified canals.
• Enlargement: Files gradually increase the canal’s diameter to accommodate the filling material.
• Measurement: Files are used with apex locators or radiographs to measure the canal’s working length.

Proper use of root canal files significantly improves the success rate of endodontic therapy by ensuring that the canal system is clean, accessible, and sealable.

Materials Used in Root Canal Files

The durability, flexibility, and cutting ability of a root canal file are highly dependent on its material:

a) Stainless Steel (SS):

Used primarily in hand files.

Strong and rigid, ideal for straight canals.

Resistant to corrosion but can cause canal transportation or ledging in curved canals due to stiffness.

b) Nickel-Titanium (NiTi):

Offers superelasticity and shape memory.

Used in both hand and rotary files.

Reduces the risk of canal deviation and perforation in curved canals.

c) Heat-Treated NiTi:

Modified crystalline structure increases flexibility and fatigue resistance.

More forgiving in highly curved or complex canal anatomies.

Common in modern rotary systems.

Material selection influences file performance, especially in difficult cases such as molars with severe curvature.

Types of Root Canal Files

Root canal files vary by use, motion, and manufacturing design. Here’s a breakdown:

a) Hand Files:

K-Files: Twisted square or triangular rods with spiral flutes. Used with a push-pull or watch-winding motion. Versatile and common for initial canal exploration.

H-Files (Hedström): Machined from round wire into a cone shape. Designed for pull motion only. Efficient cutting but prone to breakage if twisted.

Reamers: Fewer flutes per mm than K-files. Designed to rotate inside the canal to enlarge it with less cutting pressure.

Barbed Broaches: Spiked design for removing pulp tissue. Not intended for shaping.

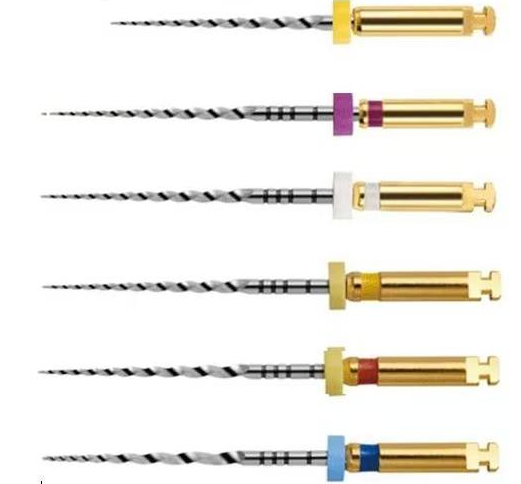

b) Rotary Files:

Motor-driven with consistent torque and speed.

Typically made of NiTi or heat-treated NiTi.

Feature various taper designs and flute geometries.

Examples include ProTaper Gold, WaveOne Gold, Reciproc Blue, and HyFlex CM.

c) Reciprocating Files:

Rotate in a back-and-forth motion rather than continuous rotation.

Reduce torsional stress on the file.

Often used as single-file systems, simplifying instrumentation.

Each type is chosen based on the case complexity, canal anatomy, and clinician experience.

Root Canal File Sizes Explained

Understanding root canal file sizes is crucial. File size refers to the diameter at the tip (D0) in hundredths of a millimeter. For instance:

• Size 10 file = 0.10 mm tip diameter.
• Size 25 file = 0.25 mm tip diameter.

These sizes are standardized according to the International Organization for Standardization (ISO 3630).

Common ISO file sizes:

Proper selection of root canal file sizes ensures effective cleaning while preserving dentin integrity.

ISO Standardization of Root Canal File Sizes

The ISO 3630 standard governs root canal instruments. It ensures that files from different manufacturers are interchangeable. Key aspects standardized include:

• Size increments: From 06 to 140 in defined intervals.
• Taper: Standard 0.02 mm/mm unless otherwise specified.
• Color-coding: For quick size identification.
• Length: Commonly available in 21mm, 25mm, and 31mm.

ISO standardization improves workflow consistency and patient safety by reducing confusion when switching between brands.

Taper in Root Canal Files

Taper is the increase in diameter along the file shaft, expressed in mm per mm. It affects shaping efficacy and final canal form.

Types of taper:

• 0.02 mm/mm (standard)
• 0.04 mm/mm (moderate)
• 0.06 mm/mm or more (aggressive)

Example:

A size 25 file with a 0.06 taper means:

• Tip = 0.25 mm
• 1 mm from tip = 0.31 mm
• 2 mm from tip = 0.37 mm

Selecting the right taper balances effective shaping with dentin conservation, especially important in teeth at risk for vertical fracture.

Hand Files vs. Rotary Files

Many clinicians combine both: hand files to create a glide path and rotary systems for shaping.

Factors to Consider When Choosing a Root Canal File

When selecting the right file or system, consider the following:

• Canal Anatomy: Curved canals need flexible NiTi or heat-treated files.
• Tooth Location: Molars with narrow, curved canals may need smaller sizes and greater flexibility.
• Obstructions/Calcifications: Start with small (06–10) hand files.
• Taper Preference: Wider taper provides better irrigation but risks weakening tooth structure.
• Experience Level: Advanced systems may require a learning curve.
• Cost and Reusability: Some systems are single-use; others are reusable with proper sterilization.

Customizing your file strategy improves safety and outcomes.

Conclusion

Root canal files are foundational tools in the practice of endodontics. Their various types, materials, and designs allow clinicians to clean and shape root canals with remarkable precision. Understanding root canal file sizes, tapers, and motion systems helps customize treatment and ensures safe, efficient, and successful outcomes.

As technology progresses, endodontic tools will continue to evolve, offering even more advanced solutions for complex canal systems. By staying informed and practicing meticulous technique, dental professionals can make the most of these vital instruments.

Frequently Asked Questions (FAQs)

Q1: What’s the best root canal file for curved canals?
A: Heat-treated NiTi files like HyFlex CM or WaveOne Gold are ideal due to their exceptional flexibility and resistance to cyclic fatigue.

Q2: What do the colors on root canal files mean?
A: Colors indicate tip diameter according to ISO standards. For example, Red = 25 (0.25 mm), Blue = 30 (0.30 mm), etc.

Q3: Are rotary files better than hand files?
A: Rotary files are faster and more consistent, while hand files offer greater tactile control. A combination often yields the best results.

Q4: Can I reuse rotary root canal files?
A: Some can be sterilized and reused per manufacturer guidelines. Single-use files should be discarded after one procedure.

Q5: What’s the smallest root canal file size?
A: The smallest commonly used file is size 06 (0.06 mm tip diameter), used to negotiate narrow or calcified canals.
